Overview:

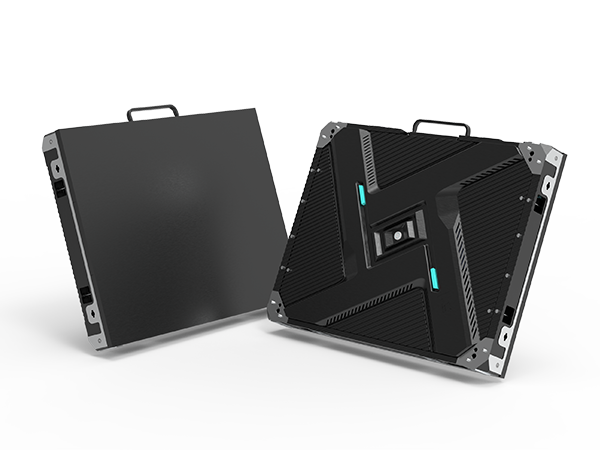

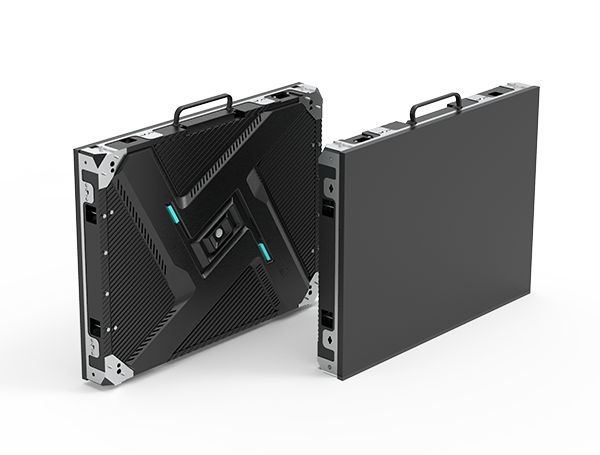

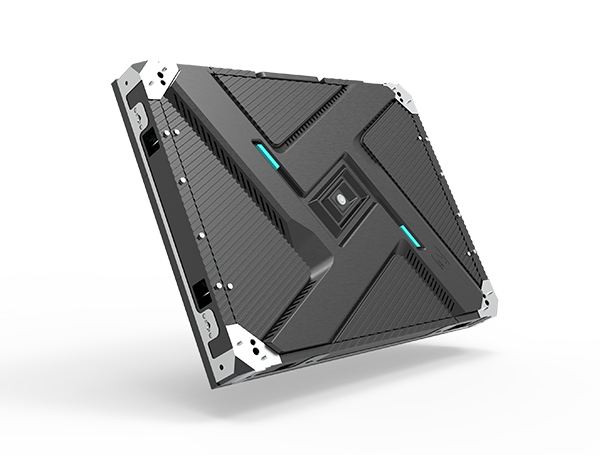

The QM Series is a newly launched LED cabinet solution featuring a 640×480mm die-cast aluminum alloy box that is lightweight, ultra-thin, and designed for versatile applications. With compatibility for 320×160mm indoor full-color modules, the QM Series supports a wide range of pixel pitches, making it suitable for various high-resolution indoor installations. Its multi-purpose, high-precision structure ensures seamless splicing and supports both front and rear maintenance, providing maximum flexibility in installation and servicing.
Key Features:
Wide Pixel Pitch Compatibility:
QM-Pro-0.9 III: 0.9mm
QM-Pro-1 III: 1.2mm, 1.3mm, 1.6mm
QM-Pro-2 III: 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm
QM-E III: 1.2mm, 1.3mm, 1.5mm, 1.6mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm
Module Composition: 2×3 configuration for optimal visual uniformity.
Ultra-Thin & Lightweight:
QM-Pro models: 4.8kg (excluding modules)
QM-E model: 3.2kg (bare frame)
Premium Materials:
Die-cast aluminum case with a durable plastic back cover for structural strength and heat dissipation.
High Precision & Seamless Splicing:
Flatness ≤0.15mm ensures smooth display surfaces without visible gaps.
Easy Maintenance:
Supports front and rear access, reducing installation limitations and simplifying servicing.
Comprehensive Accessories:
Includes magnets, power cord, network cable, high-precision die-cast connectors, screws, and side locks.
Space-Efficient Installation:
Requires only ≥150mm installation depth, can be mounted directly against the wall.
Applications:
Ideal for conference rooms, control centers, broadcast studios, high-end retail spaces, exhibitions, and other indoor environments requiring high-definition visuals and efficient maintenance.
